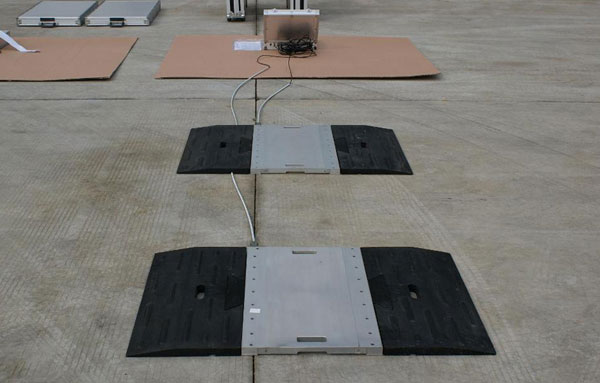

PORTABLE AXLE WEIGH BRIDGE

Light enough to be portable yet large enough for any type of vehicle. Weighing Pads not only looks tough, they are built tough. Can be used in almost any applications. Can accommodate for virtually any vehicle’s axle arrangement with the simple use of dummy plates. These are simply rubber spacers of different sizes that can be placed between multiple pads.

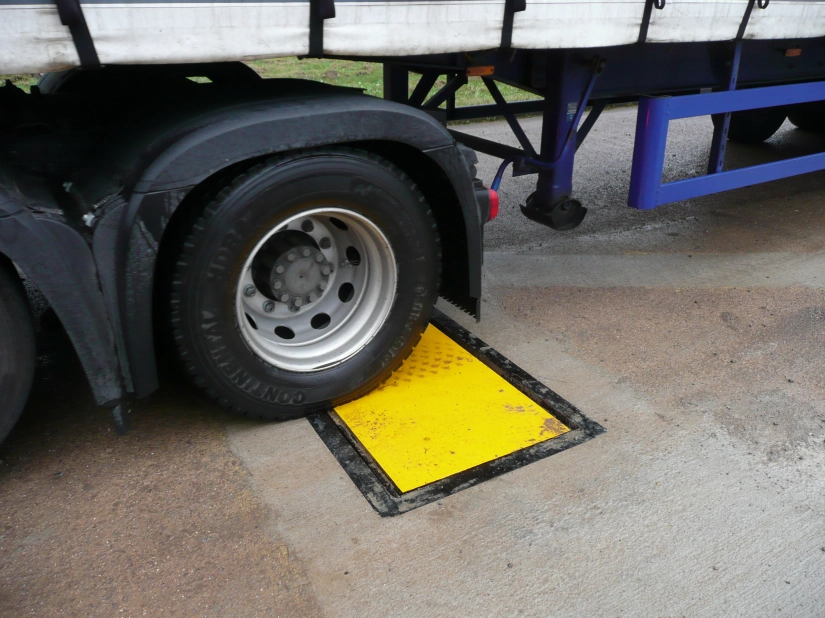

FIXED AXLE WEIGH BRIDGE

Provides the easiest and quickest method of obtaining axle weights of all types of road vehicles. Can be operated either statically (stop and go), or dynamically (in motion) which gives the best results when weighing large vehicles with self-compensating suspension systems. Usually installed where scale needs to become part of the road and the weighing is integral to other processes. Locations such as border crossings, toll lanes, shipping and ports gates are typical examples for permanent system.

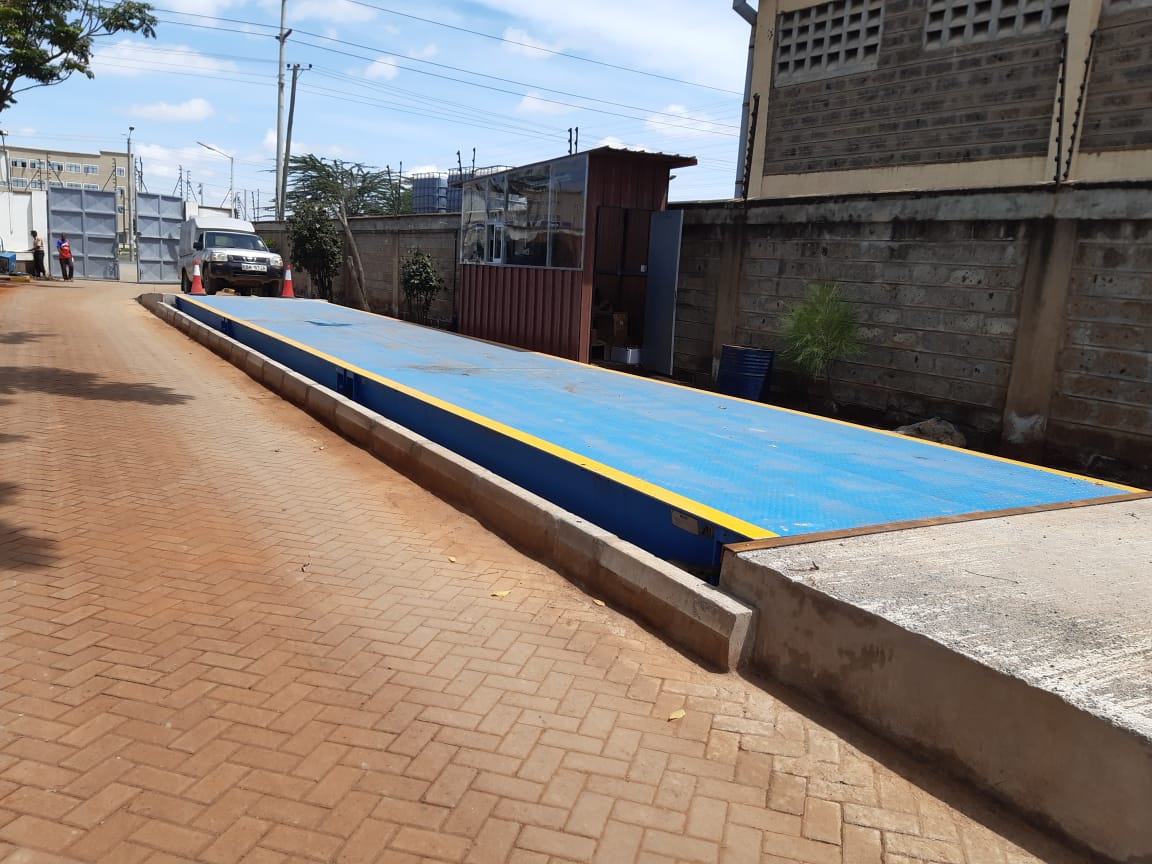

MODULAR WEIGH BRIDGE

Their main feature is the "Ease Of Erection". Modular Weigh bridges can be dismantled easily and again erected with ease at any other location. A new and revolutionary concept that offers a high level of accuracy and the lowest level of maintenance than most of the other weighbridge types.

Weighing Accessories & Software

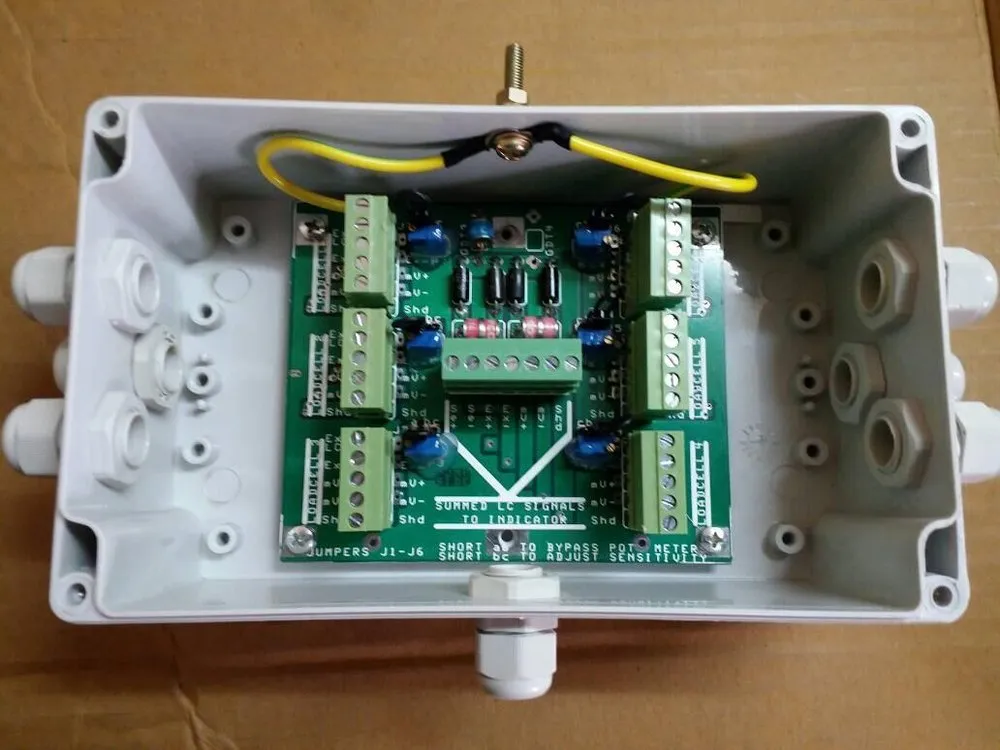

JUNCTION BOXES

CAPACITY : Digit LCD display, with white LED backlight
FEATURES: Dust and Water tight (IP 67) protection. Protects load cells against surges caused by lightening. Repeated auto-resetting operation without maintenance. Reliable protection through high surge absorption cap. Weatherproof enclosure.
POWER: No effect on system accuracy.
INTERFACES: Ambient working temperature :-20 degree to 60 degree. OPTION AVAILABLE: 4 / 6 / 8 / 12 loadcell connection available. HOUSING: ABS Plastic & S.S.T. Housing option.

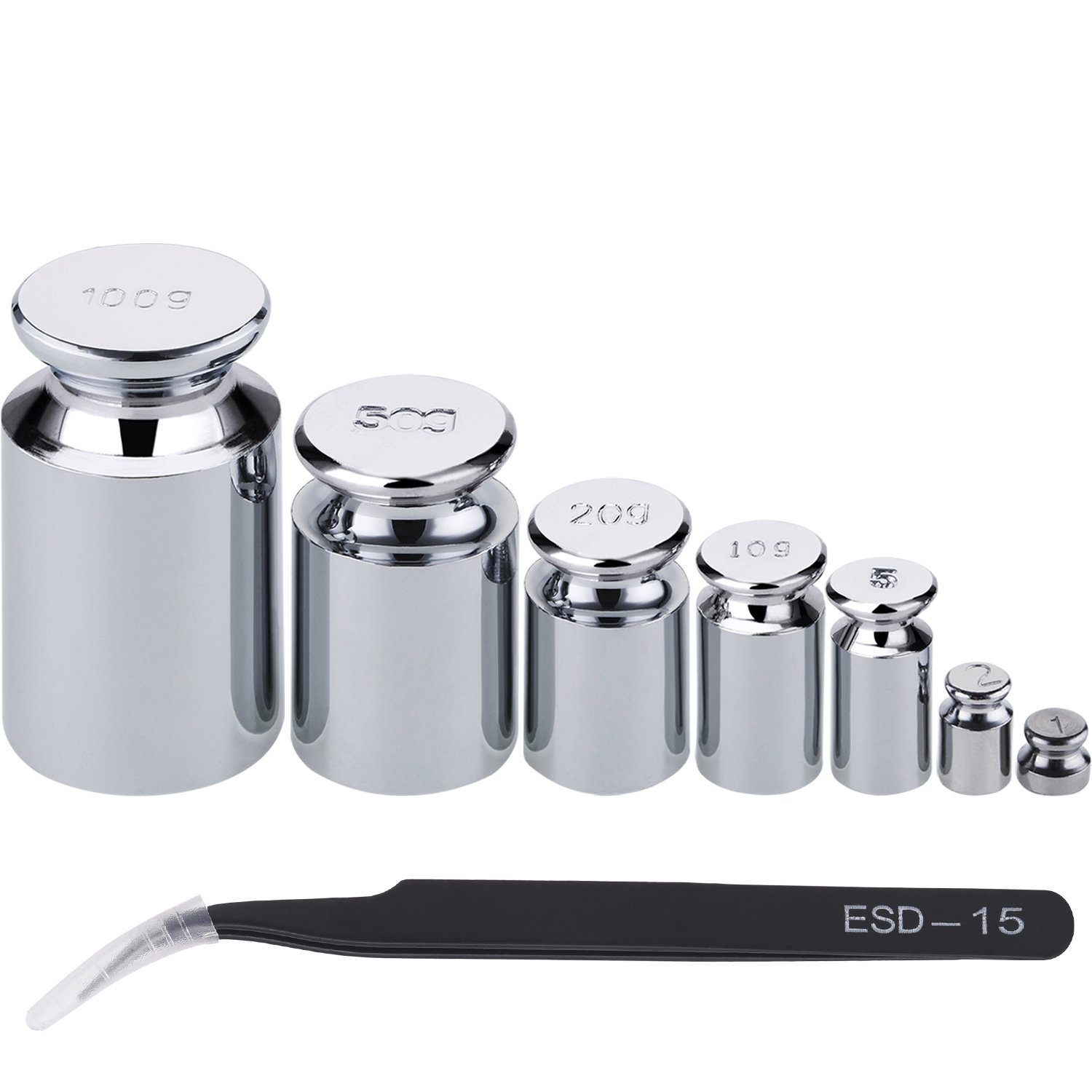

STANDARD WEIGHTS - (CALIBRATION MASSES)

A wide variety of calibration masses are available. Accuracy Class include M2 and F1.
M2 masses are available in 50kg, 20kg, 10kg and 5kg. Made of Mild Steel Material, square shaped with a handle and come in 1pc Fabrication.
F1 masses are available in 2kg-Img. Made of Stainless Steel Material, cylindrically shaped with a knob and come in 1pc Fabrication. M2 come as individual units while F1 come in Set, packed in polished wooden box, lined with velvet and provided with forceps.

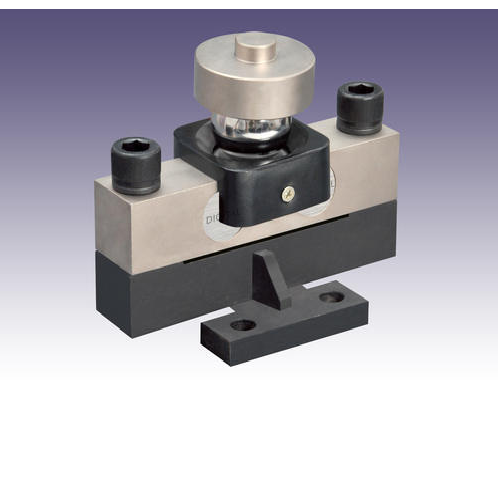

LOAD CELLS

A range of loan Cells including:
Weighbridges Load Cells.
Compression Load Cells.
Floor Scale Load Cells
Platform Scale Load Cells.
Both Weighbridge loadcells and compression loadcells come in both Digital and analogue options.

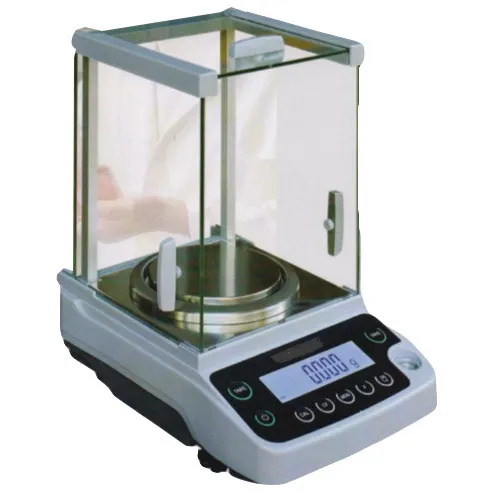

Lab / Analytical / Precision / Jewellery - Weighing Balances

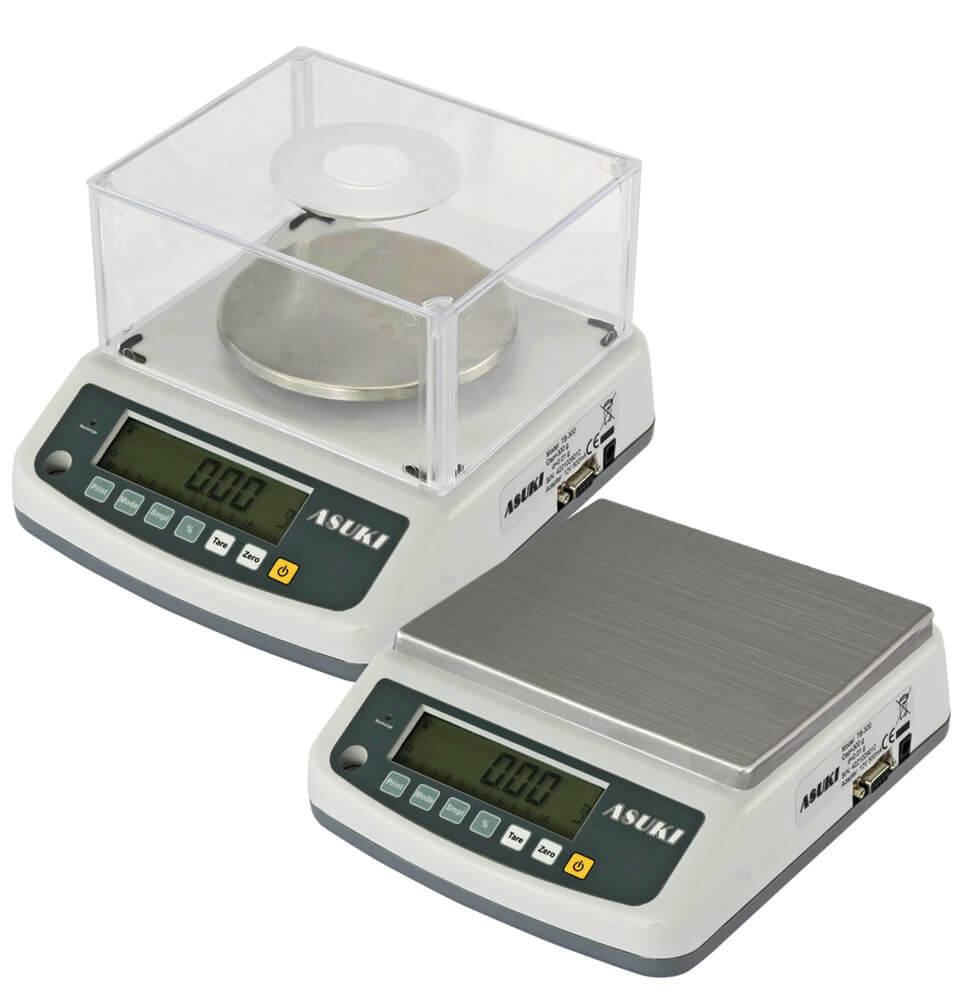

THB SERIES

CAPACITY : 300g, 600g, 1500g
READABILITY: 0.01g, 0.02g, 0.05g
MINIMUM LOAD: 0.2g, 0.4g, 1g
DISPLAY: LCD display with LED back light.
POWER: AC adapter (12V/500mA), Rechargeable battery(6V/1.2Ah).
KEYBOARD: 7 Keys (Membrane Keyboard)
INTERFACES: 1 X RS-232

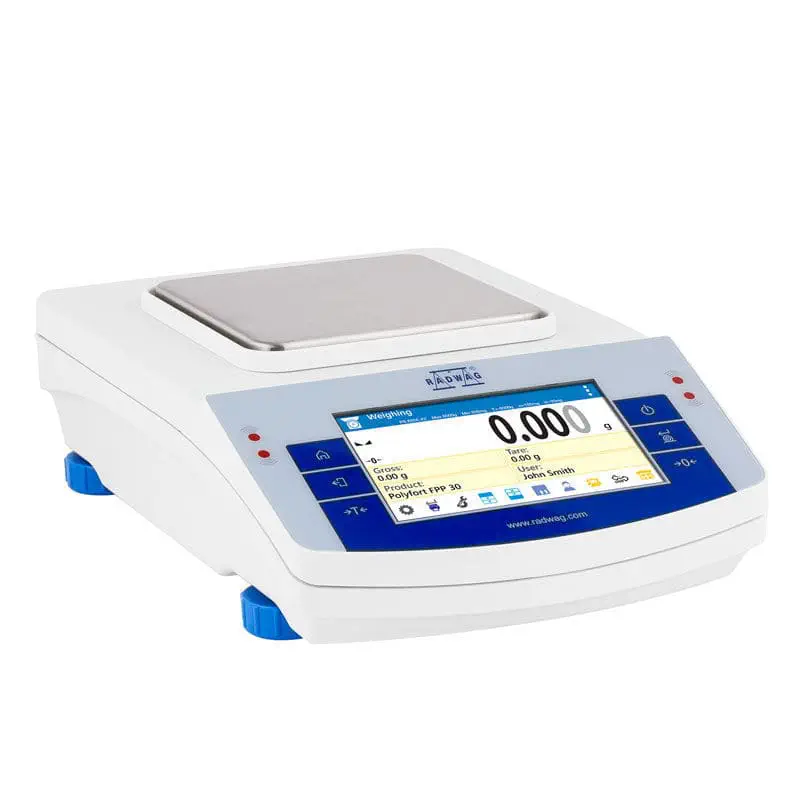

PS SERIES

CAPACITY : 510g, 1000g
READABILITY: 1 mg
MINIMUM LOAD: 20mg
DISPLAY: LCD (Backlight)
POWER: 12 ÷ 16 V DC.
WORKING TEMPERATURE: +10 - +40 °C
INTERFACES: • 2 x RS 232, • USB A, • USB B, • WiFi Optional

AS SERIES

CAPACITY : 200g
READABILITY: 0.1mg
MINIMUM LOAD: 10mg
DISPLAY: LCD Display with LED Back light.
POWER: 12 ÷ 16 V DC
WORKING TEMPERATURE: +10 - +40 °C
INTERFACES: 1 X RS-232

Table Top Scales

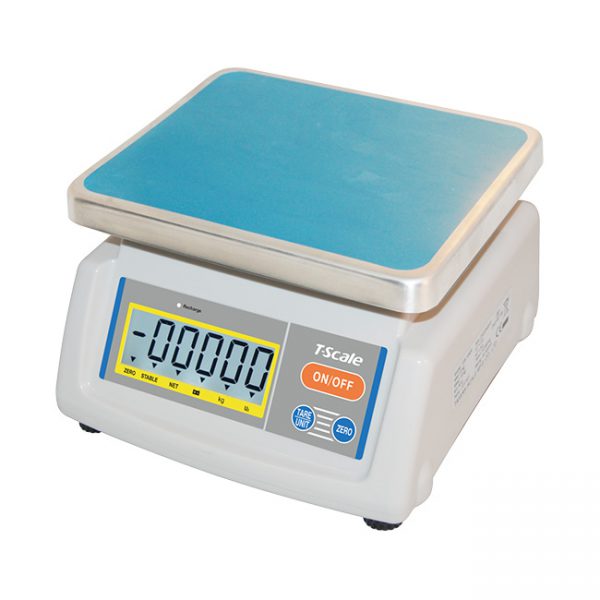

ET-28 (SPLASH PROOF)

CAPACITY : 3kg, 6kg, 15kg
READABILITY: 0.5g, 1g, 2g
MINIMUM LOAD: 10g, 20g, 40g
DISPLAY: LCD display with LED back light.
POWER: AC adapter (12V/500mA), Internal rechargeable battery (6V/4Ah).
KEYBOARD: 3 Keys (Membrane Keyboard)
HOUSING: ABS Plastic Body, S.S. PAN

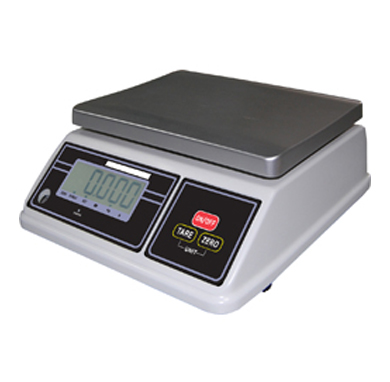

S29 BR

CAPACITY : 3kg, 6kg, 15kg
READABILITY: 1g, 1g, 2g
MINIMUM LOAD: 10g, 20g, 40g
DISPLAY: LCD display with LED back light.
POWER: AC adapter (12V/500mA), Internal rechargeable battery (6V/3.2Ah)
KEYBOARD: 3 Keys (Mechanical Switch)
HOUSING: SST Housiung , S.S.T PAN

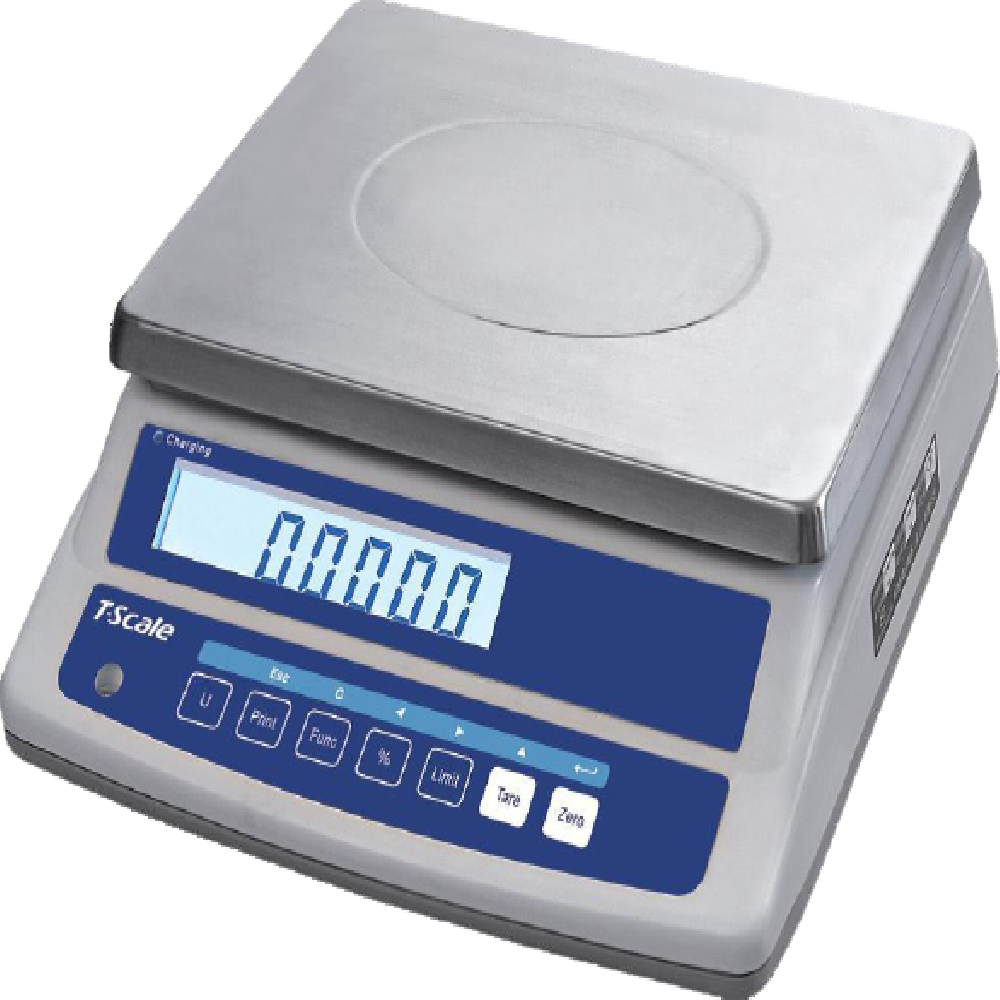

AHW

CAPACITY : 3kg, 6kg, 15kg, 30kg
READABILITY: 0.1/0.05g, 0.2/0.1g, 0.5/0.5g, 1g
MINIMUM LOAD: 2/1g, 4/2g, 10/4g, 20g
DISPLAY: LCD Display with LED Back light.
POWER: AC adapter (12V/500mA), Internal rechargeable battery (6V/4Ah)
KEYBOARD: 7 Keys (Membrane Keyboard)
HOUSING: ABS Plastic Body, S.S. PAN

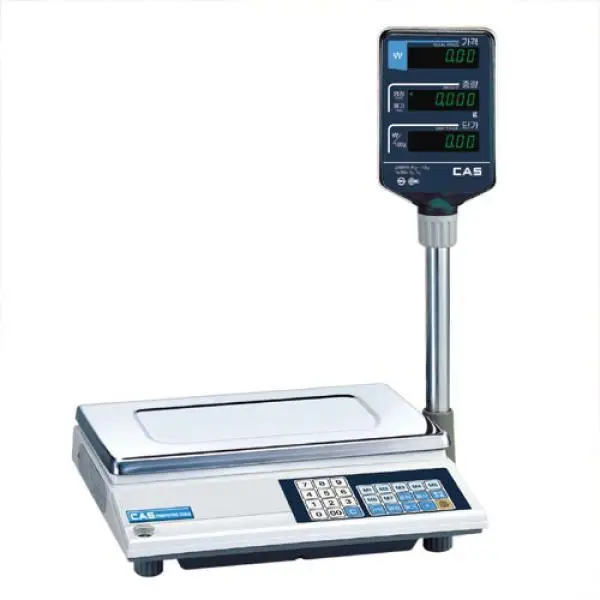

Retail Scales

ESUP

CAPACITY : 30kg
READABILITY: 5g
MINIMUM LOAD: 100g
DISPLAY: Rear & Front LCD display with LED back light.
POWER: AC adapter (12V/500mA), Internal rechargeable battery (6V/4Ah).
KEYBOARD: 20 Keys + 30 PLU Keys (Membrane Keyboard)
HOUSING: ABS Plastic Body, S.S.T PAN

POS (Thermal Printing Scale)

CAPACITY : 30kg x 10g
DISPLAY: LCD 5/ 6/ 6 (Weight/Unit Price/Total Price)
PLATFORM SIZE (mm): 403(W) x 260(D)
POWER: AC 230V, 50/ 60Hz, Rechargeable Battery (inside) : 7.4V 2Ah(Li-ion)
PRINTER INFO: Thermal Printing, 32 Characters Per Line, 50mm/sec Speed
INTERFACE: Cash drawer (RJ11) interface

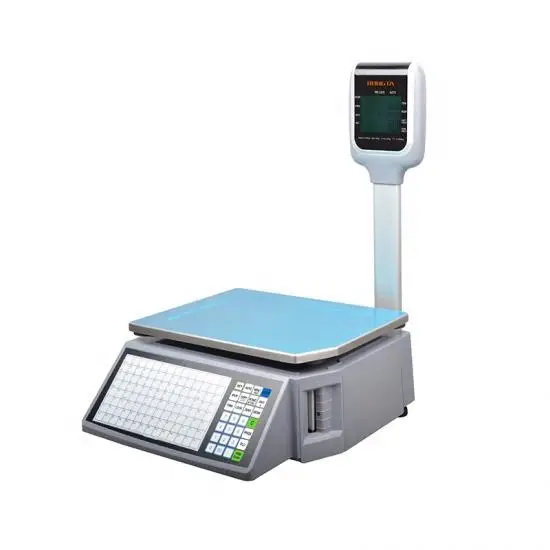

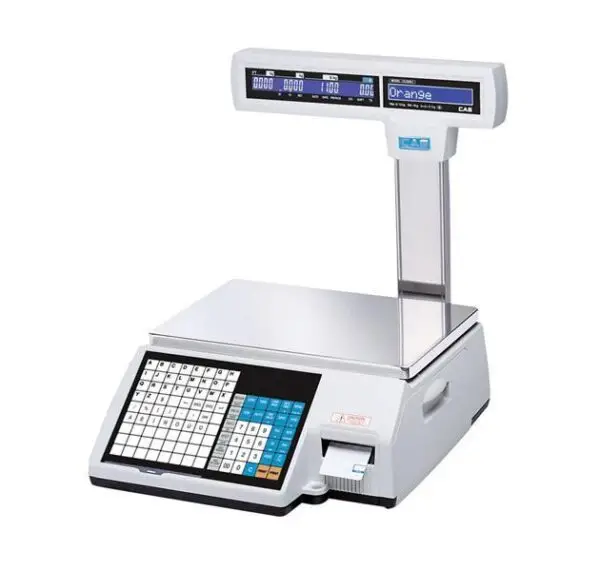

CL 5000 (Label Printing Scale)

CAPACITY : 30kg
DISPLAY: Graphic LCD, Commodity Name, Scrolling Message & Menu Text
LABEL SIZE: Width : 40 mm ~ 60 mm , Length : 30 mm ~ 120 mm
TRAY SIZE (mm): 382 (W) X 246 (D)
POWER: AC 100~240V , 50/60 Hz
PRINTER INFO: Resolution 202 dpi, 100 mm/sec speed, Combine of Thermal & Label printing in one scale is also available.

Bench Scales

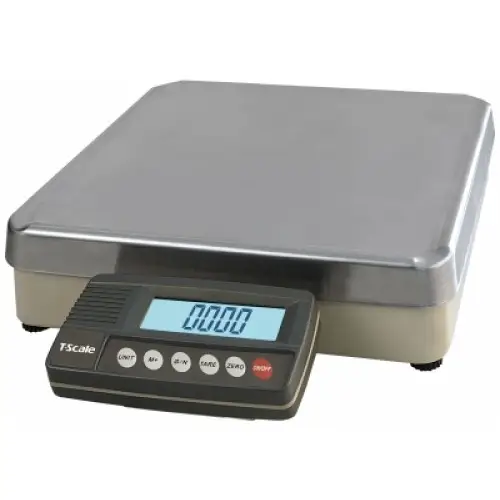

PRW SERIES

CAPACITY : 60kg
READABILITY: 1g (Minimum Load 20g)
PAN SIZE : 320mm x 360mm
DISPLAY : 22mm LCD display, attached backlight
KEYBOARD: 6keys(Mechanical switch)
POWER: AC adapter (12V/500mA), Ni-MH battery (1.2V/2000mAh x 6)
FUNCTION: Net/gross shift, units conversion, check weighing

XK 3101

CAPACITY : 50kg
READABILITY: 2g (Minimum Load 20g)
PAN SIZE : 300mm x 4000mm
DISPLAY : The bright red LED is visible in the poorly lit areas
KEYBOARD: 4keys(Mechanical switch)
POWER: AC Adapter with rechargeable Battery
FUNCTION: Net/gross shift, units conversion, check weighing

Crane Scales

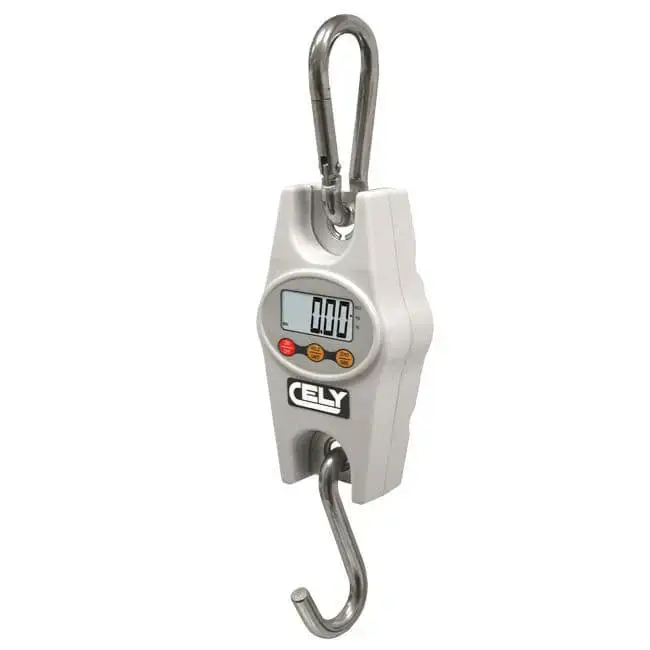

CR CRANE SCALE

CAPACITY : 40kg / 100kg
READABILITY: 20g /50g
DISPLAY : 16.5mm digits high LCD display
POWER: Dry Battery Cell - (Size AA 1.5V x 3)
FUNCTION: Zero, tare, change weighing unit, hold
USES: Ideal for Milk, Tea & Food Industry, Both side stainless steel hook

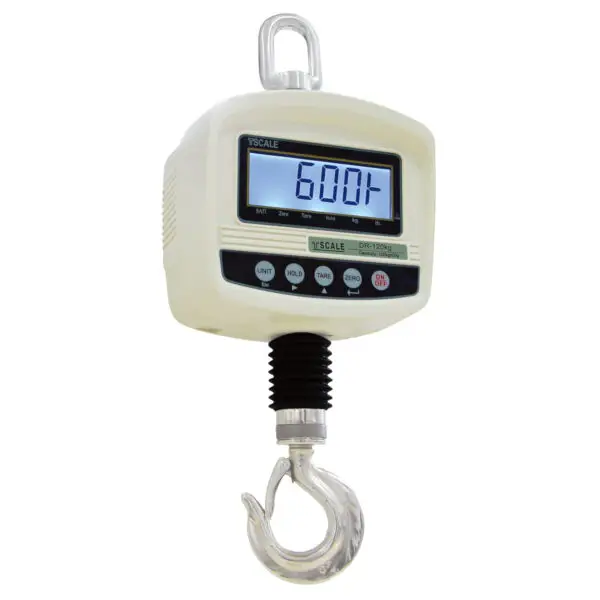

DR CRANE SCALE

CAPACITY : 150kg
READABILITY: 100g
DISPLAY : 25mm LCD Display attached white color LED Display
POWER: Battery provide upto 40 Hours of continuous use (without) Backlight
FUNCTION: Net/gross shift, units conversion, check weighing Zero, tare, change weighing unit, hold
USES: Ideal for Milk, Tea & Food Industry, Both side stainless steel hook.

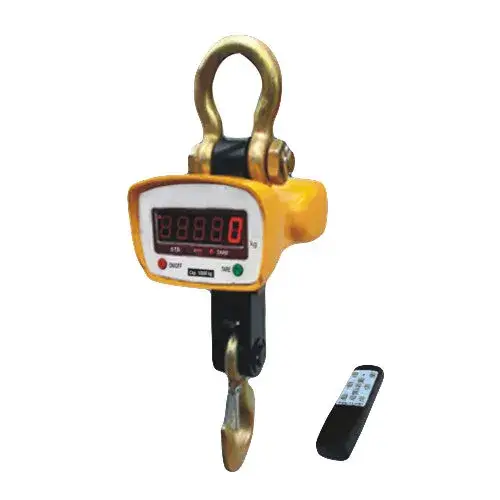

HD CRANE SCALE

CAPACITY : 500kg, 1 Ton, 2 Ton, 3 Ton, 5 Ton
READABILITY: 100g, 500g, 1kg, 1kg, 2kg
DISPLAY : LED/LCD Display
POWER: Standard A/C Adapter and rechargeable battery
FUNCTION: On/Off, Zero, Tare (Manual or Auto) function, Optional - Wireless remote controller, Batery operated / Low battery indication.

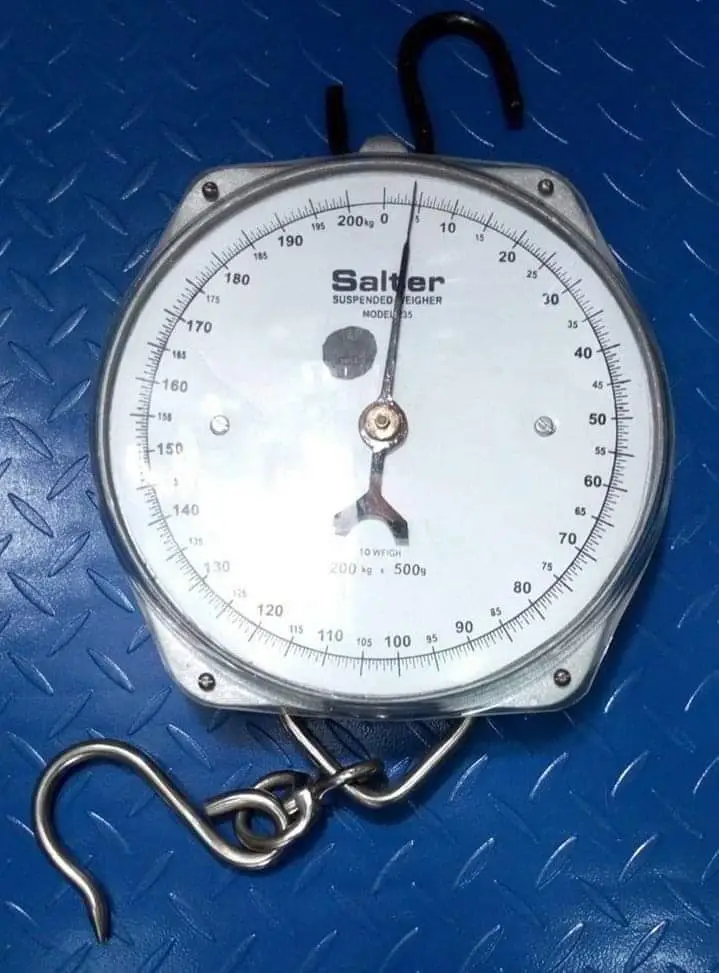

HD CRANE SCALE

CAPACITY : 100kg, 200kg
READABILITY: 100g, 500g
FUNCTION: • Compact, robust and corrosion resistant, housed in a tough ABS plastic case with shatterproof polycarbonate dial cover.
• Supplied with removeable top and bottom hooks.
• Rotor enclosed inside glass chamber.
• Round Faced Front with Pointed weight-indicating.

Platform Scales

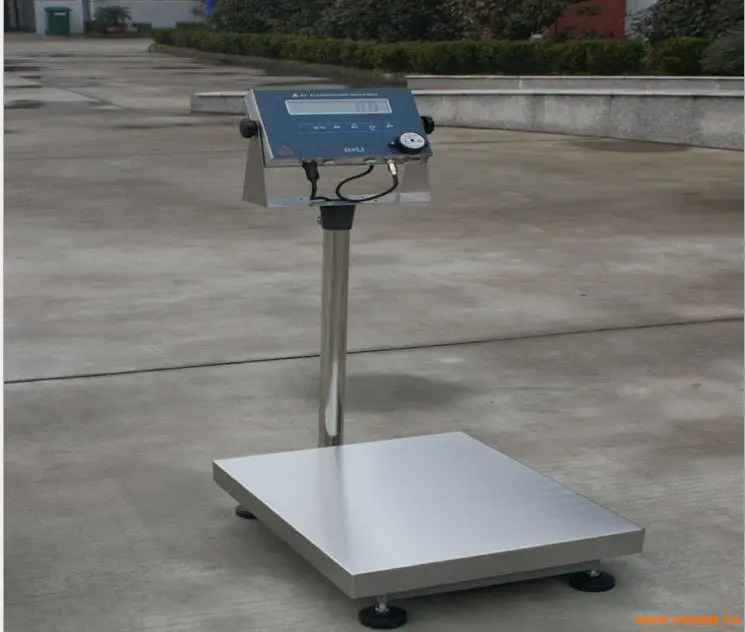

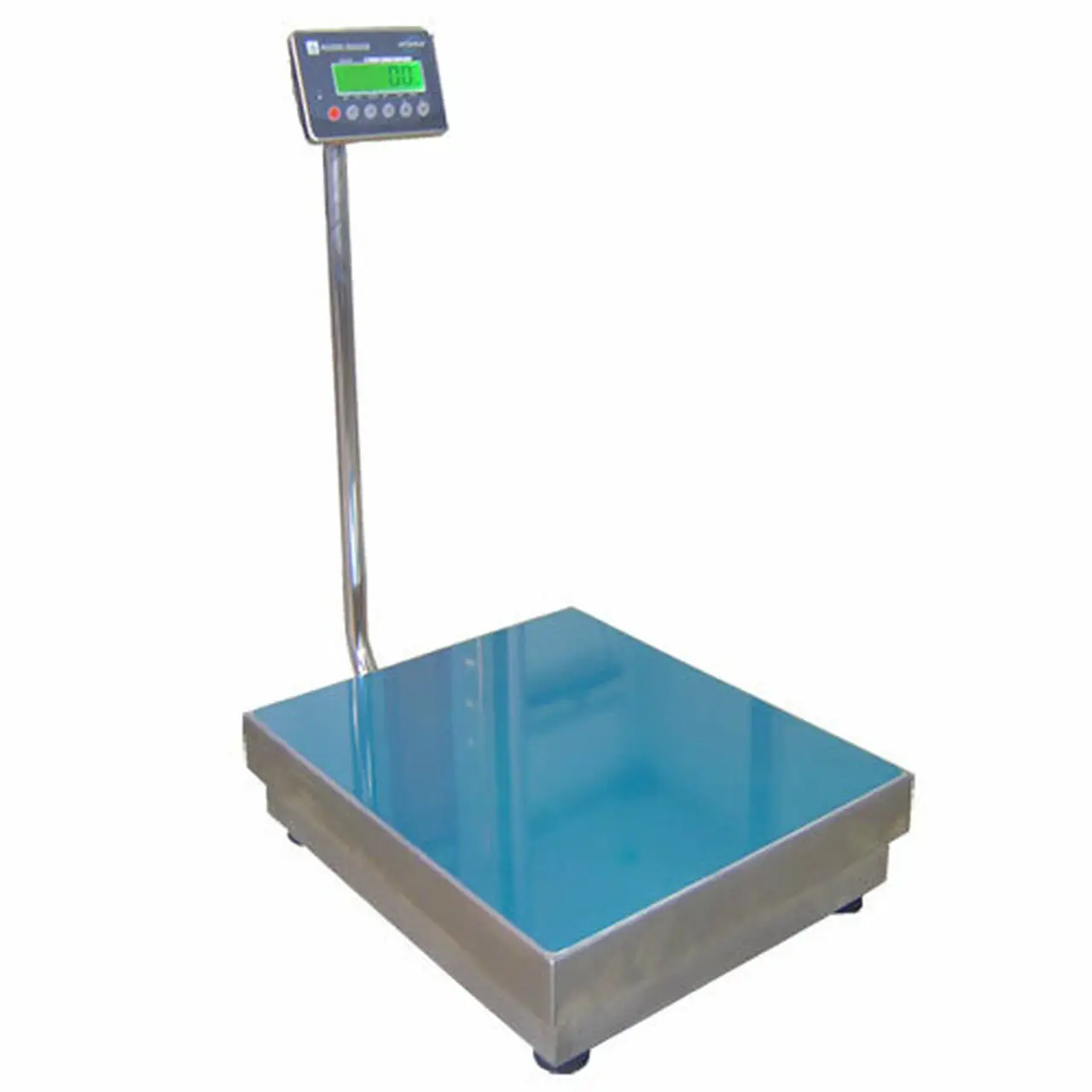

PS450, PS500, PS600 & PS750

SIZE: 400 X 500 mm, 500 X 500 mm, 600 X 600 mm, 750 X 750 mm
CAPACITY : 100/150/200 Kg, 100/150/200/300 kg, 150/300/500 Kg, 300/500/1000 Kg
ACCURACY: 10/20/20 g, 10/10/20/20 g, 20/50/50 g, 20/50/100 g
FEATURES:Fully S.S. Top Plate & M.S. Base, Single Point Loadcell, Four Adjustable Feet, Heavy Duty Bolted Grill with Attached POLE for Indicator. (Back Grill is not availabe in Model: PS450)

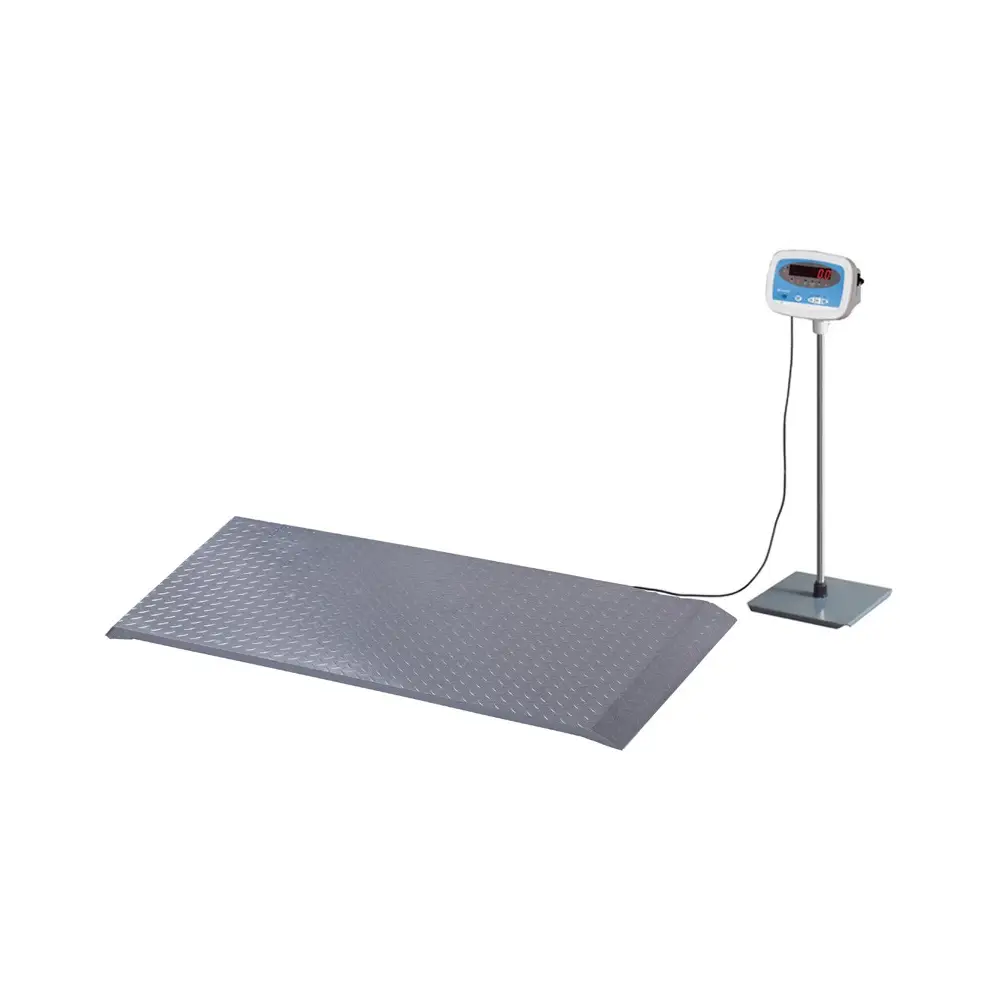

PS1000, PS1200, PS1500 & PS2000

SIZE: 1000 X 1000 mm, 1200 X 1200 mm, 1500 X 1500 mm, 2000 X 2000 mm
CAPACITY : 500Kg / 1T / 2T / 3T, 1T / 2T / 3T, 2T / 3T / 5T, 500g/1Kg
ACCURACY: 100g/500g, 500g, 500 g, 500g/1Kg
FEATURES: Checkered top plate with M.S. body, IP 67 Alloy Steel x 4 Load Cell system, Four Adjustable Feet, OPTION: Full S.S.T Scale, Able to connect any type/brand weighing indicator, all other customized Size available.

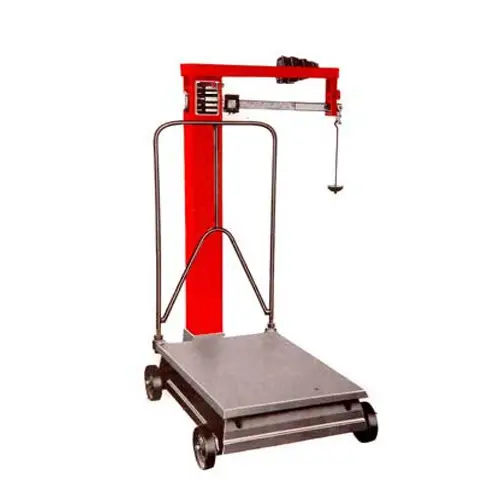

Mechanical Platform Scale (Bar Type)

SIZE: 605 mm X 450 mm
CAPACITY: 300 Kg
ACCURACY: 500g
HOUSING: CAST IRON BODY

Other Scales

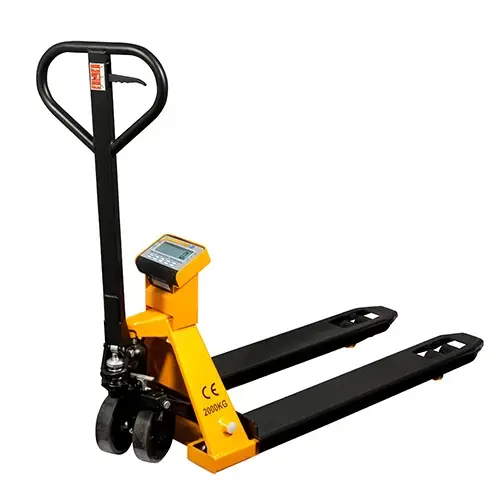

Pallet Scale

CAPACITY: 3 TON
FEATURES: Pallet truck with Electronic Scale, Reduce time & effort by carrying & weighing simultaneously, Using oil pressure for putting down the fork in stable, Instant weigh readings are available as soon as the forks are raised.
POWER: Battery provide up to 60 Hrs. of continuous use.
INTERFACES: Option – Serial dot printer.

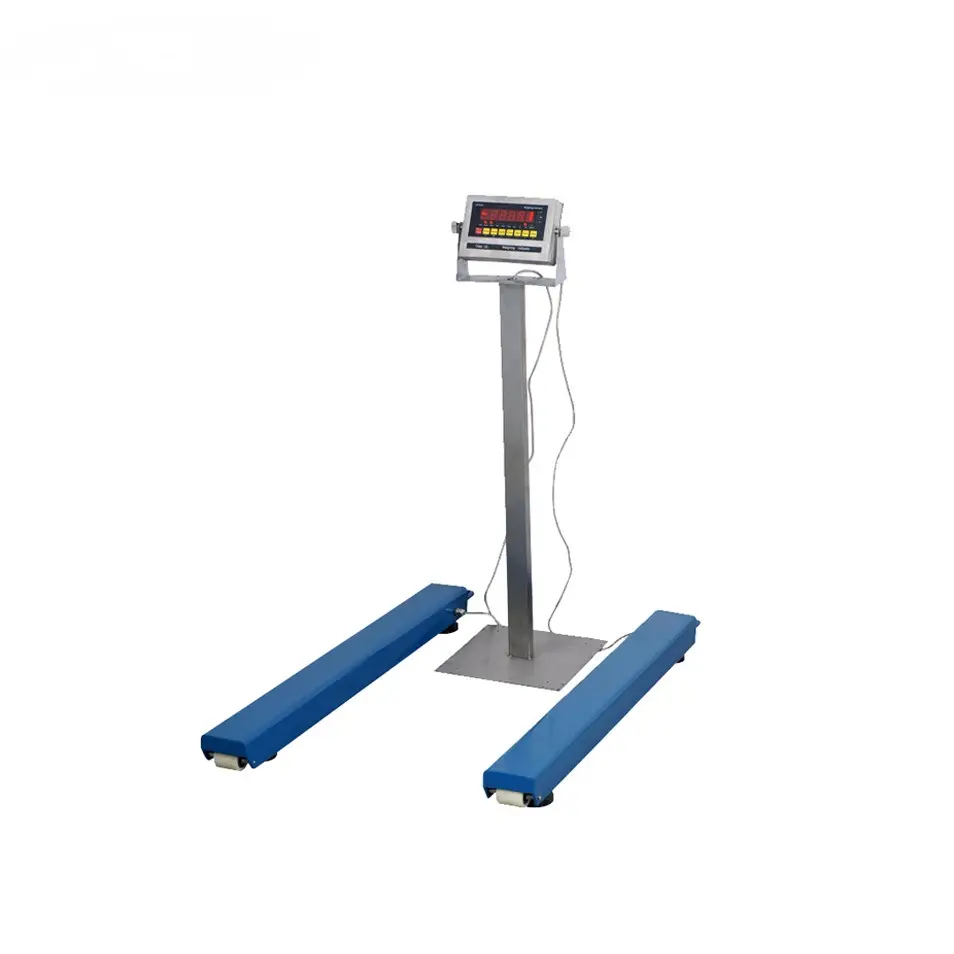

Bar Scale

CAPACITY: 1 TON, 2 TON, 3 TON
FEATURES: Used in any size application, specially any size pallet weighing, Low Profile Heavy Duty design connected to any weighing indicator, Easy access SST Junction box : corning from the top rocker pin foot assembly provide stability & durability, 4 Loadcell system
POWER: Rechargeable battery powered.

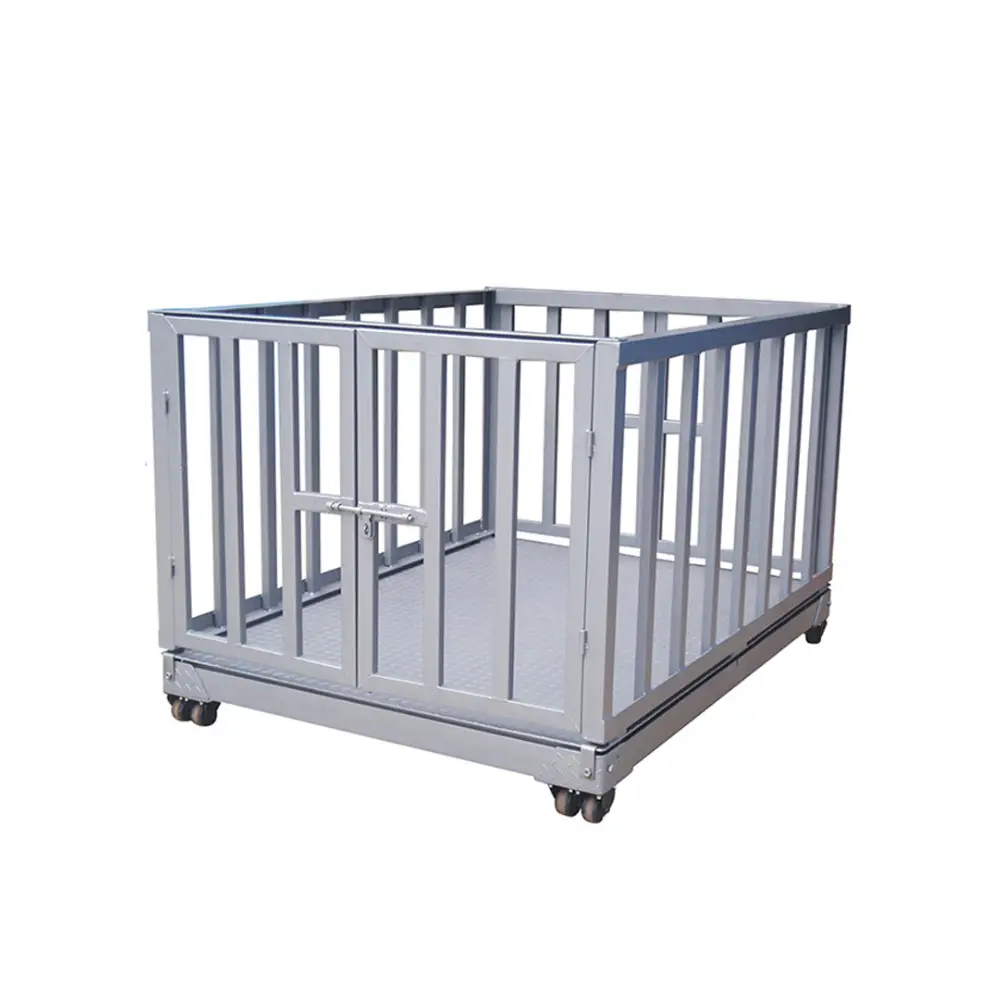

Animal Weighing Scale

CAPACITY: All capacities available
SIZE: Any other customized Size available
FEATURES: Checkered top plate with M.S. body, IP 67 Alloy Steel x 4 Load Cell system, Four Adjustable Feet, Able to connect any type/brand weighing indicator.
OPTION: For mobility the rubber wheel option is also available, Full S.S.T Scale.
